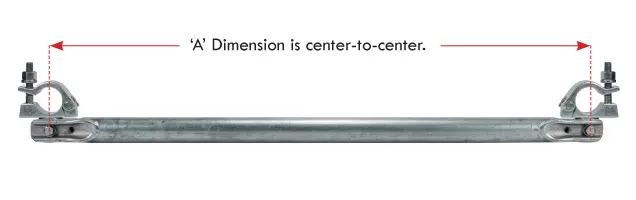

Ring-System Swivel-Clamp Bay Braces
Tube-and-clamp diagonal braces sized by bay width and lift height for compatible ring-system scaffold layouts.
| SKU | Dimensions | Weight |
|---|---|---|
| SS-RL-SCB-040-066 | 4 ft bay × 6 ft 6 in lift | 18.19 lb / 8.25 kg |
| SS-RL-SCB-050-066 | 5 ft bay × 6 ft 6 in lift | 19.25 lb / 8.73 kg |
| SS-RL-SCB-060-066 | 6 ft bay × 6 ft 6 in lift | 20.33 lb / 9.22 kg |
| SS-RL-SCB-070-050 | 7 ft bay × 5 ft lift | 19.88 lb / 9.02 kg |
| SS-RL-SCB-070-066 | 7 ft bay × 6 ft 6 in lift | 21.67 lb / 9.83 kg |
| SS-RL-SCB-070-070 | 7 ft bay × 7 ft lift | 22.26 lb / 10.1 kg |
| SS-RL-SCB-070-080 | 7 ft bay × 8 ft lift | 23.58 lb / 10.7 kg |
| SS-RL-SCB-080-066 | 8 ft bay × 6 ft 6 in lift | 22.99 lb / 10.43 kg |
| SS-RL-SCB-086-066 | 8 ft 6 in bay × 6 ft 6 in lift | 23.65 lb / 10.73 kg |
| SS-RL-SCB-080-080 | 8 ft bay × 8 ft lift | 24.82 lb / 11.26 kg |
| SS-RL-SCB-090-066 | 9 ft bay × 6 ft 6 in lift | 24.44 lb / 11.09 kg |
| SS-RL-SCB-100-066 | 10 ft bay × 6 ft 6 in lift | 25.94 lb / 11.77 kg |
Request pricing and availability
Frequently asked questions
What is included with Ring-System Swivel-Clamp Bay Braces?
Included components and accessories depend on the selected product code and approved configuration. Confirm the bill of materials before ordering.
Is Ring-System Swivel-Clamp Bay Braces suitable for my project?
Suitability depends on the intended use, supported loads, site conditions, access, foundation, configuration and applicable requirements. A competent person must review the scaffold, and the supplier must verify the selected components.
What height does Ring-System Swivel-Clamp Bay Braces provide?
Use the product-code dimensions shown on this page and confirm any effective, working or overall height required for the project.
Can I get pricing and freight for Ring-System Swivel-Clamp Bay Braces?
Yes. Submit the displayed Scaffold Syndicate product code, quantity and job-site ZIP code. Pricing, availability, package contents and freight are verified before an order is accepted.
